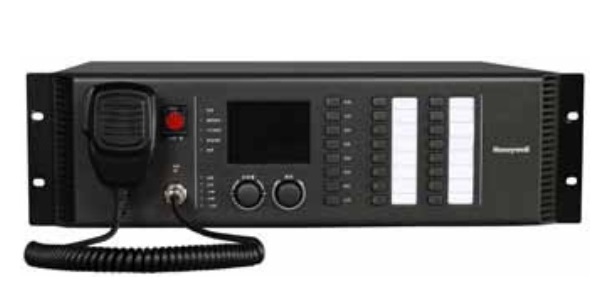

Bộ xử lý trung tâm 8 vùng Honeywell HCU-2000
– Zone (Vùng loa): 8
– Channel (Kênh âm thanh): 2
– Contact input: 10, Contact output: 8
– Tích hợp sẵn ampli 500W Class-D
– Có màn hình LCD phía trước
– Hệ thống có khả năng mở rộng đến 128 vùng loa
– Có chế độ ampli dự phòng
– Có khả năng phát hiện và chỉ báo lỗi
– Nguồn: 220-240VAC, 50/60Hz
– Ethernet port: 10M/100M
– Nhiệt độ hoạt động: -10°C~ 50°C
– Kích thước: 482 ×133.5 ×420 mm (W x H x D)
Features
– Complies with international standards
– A highly compact and integrated system
– Simple and easy to use with an innovative design
– Provides easy access to status updates, amplifer backup, logging and direct paging capabilities
– Plug-and-play with default settings
– Intuitive set-up with step-by-step guided interaction between buttons and screens
– Can achieve all calls by confgurable keys
– Auto configures when components are physically connected
Specifications
Model | HCU-2000 |
Main power supply voltage | AC 220-240V, 50/60Hz |
Backup power supply voltage | AC 220-240V, 50/60Hz |
Main power supply fuse | T10AH 250V |
Rated power | 750W |
MICROPHONE INPUT | |
Input sensitivity | -65±3dBV |
Input impedance | 250Ω |
Frequency response | 90 Hz -13KHz |
SNR | >50dB (with A-Weight) |
AUXILIARY INPUT | |
Channel | 2 |
Input sensitivity | 1V (0dBV) |
Input impedance | 10 KΩ |
Frequency response | 85Hz-18KHz |
SNR | >77dB (with A-Weight) |
MIC/LINE INPUT | |
Input sensitivity | -50dBV/0dBV, selectable |
Input impedance | 10 KΩ |
Frequency respons | 85Hz-18KHz |
SNR | >77dB (with A-Weight) |
Phantom power | DC 24V, switchable |
CALL STATION INTERFACE | |
Input signa | 2 |
Input impedance | 20 KΩ |
Output signal | 2V |
Output impedance | 20 KΩ |
Frequency response | 85Hz-18KHz |
AUDIO OUTPUT | |
Output channel | Channel 1, channel 2 and recording output |
Output signal | 1V (0dBV) |
THD | <0.5% |
AMPLIFIER CONTROL INTERFACE | |
Channel | 3 (channel 1, channel 2 and backup amplifier) |
Output signal | 1.4V |
THD | <0.5% |
Control signal | Self-test signal, amplifier fault signal and power saving control signal |
LOUDSPEAKER CIRCUITS | |
Output channel | 8 (with group A and group B) |
Maximum loudspeaker load | 500W |
CONTACT INPUT /OUTPUT | |
Contact inputs | 10 (monitored) |
Contact outputs | 8 (NO, NC & COM), “fault” output, “emergency” output |
Max. working voltage for Outputs | AC 250V/DC 30V |
Max. working current for Outputs | 2.5A |
OTHERS | |
DC power output | 24V/1A |
Monitoring loudspeaker | 2W/8Ω |
Ethernet port | 10M/100M |
Memory capacity | 1GB |
Dimension (W×H×D) | 482 ×133.5 ×420 mm |
Weight | 14.3kg |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
