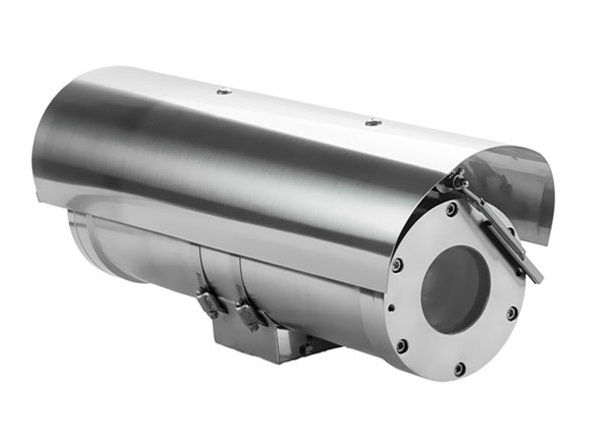

Camera IP chống cháy nổ 2.0 Megapixel HONEYWELL HEICC-2301T
– Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
– Độ phân giải: 1920 x 1080 pixels.
– Zoom quang: 30x.
– Độ nén hình ảnh: H.265 / H.264 / MJPEG.
– Nhiệt độ hoạt động: -40°C~60°C.
– Tiêu chuẩn bảo vệ: IP68.
– Nguồn điện: 100~240V AC.
– Chứng nhận: ATEX II 2 GD; Exd IIC T6 Gb, Ex t IIIC T80°C Db.
Đặc tính kỹ thuật
Model | HEICC-2301T |
Camera | |
Image Sensor | 1/2.8 inch Sony Progressive CMOS |
Optical Zoom | 30x |
Digital Zoom | 16x |
Number of pixels (H×V) | 1920 × 1080 (1080p) |
WDR | 120 dB |
S/N Ratio | ≥ 55 dB (AGC off) |
Minimum Illumination | 0.0187 lux (color)/0.012 lux (B/W) @ F1.6, 30 IRE, 1/30 0.0547 lux (color)/0.0348 lux (B/W) @ F1.6, 50 IRE, 1/30 0.005 lux (color)/0.0005 lux (B/W) @ F1.6, long exposure |
Focal length | 4.5 mm – 135 mm |
Max aperture | F1.6 – F4.4 |
Focus mode | Manual/Auto/Semiauto/PTZ Trigger |
Micro SD Card | Up to 64GB Micro SD card (card not included) |
Angle of view | H: 62.35° – 2.53° V: 37.87° – 1.79° |
White Balance | Auto/ Indoor/ Outdoor/ ATW/ Manual/ Outdoor Auto/ Sodium Lamp Auto/ Sodium Lamp |
Exposure Mode | Iris Priority/ Shutter Priority/ Gain Priority/ Manual |
Backlight Compensation | BLC/HLC/WDR (120 dB) |
Electronic Shutter | 1/1 to 1/30,000 sec |
Electronic image stabilization | On/Off |
Defog | On/Off |
Day/Night | Auto/Color/BW |
IR cut filter | Auto/Manual |
Operational | |
Privacy Masks | 24 |
Motion detection | On/Off |
Image rotation | Flip |
Auto resume after power failure | Auto |
Analog video out | Yes |
Video analytics | ADPRO IntrusionTrace2, ADPRO LoiterTrace2, Face Detection |
Event notification | Record to FTP, Relay output, Email, Preset, Tour, Snapshot |
Video | |
Video compression | H.265 / H.264 / MJPEG |
Video streaming | Primary Stream: 1080p up to 60/50 fps; 1.3M/720p up to 30/25 fps 2nd Stream: 1080p/1.3M/720p up to 30/25 fps 3rd Stream: D1/CIF up to 30/25 fps |
Video resolution | Up to 1080p (1920×1080p) |
Interface | RJ-45, 10/100 Mbps Ethernet |
General | |
Power source | 100~240V AC, 75W Min |
Power Consumption | Max 3.0A, 50/60 Hz |
Dimensions | 524 x 215 x 179mm |
Weight | 14kg |
Housing | AISI 316L Stainless Steel Construction |
Connectors | Power input: 3-pin Network: RJ45 connector Alarm I/O: 1/1 (washer control) Audio I/ O: 1-way input, 1-way output |
Operating temperature | –40°C to 60°C |
Waterproof standard | IP68 |
ATEX | II 2 G Ex db op is IIC T6 Gb II 2 D Ex tb op is IIIC T80° C Db |
– Bảo hành: 24 tháng.
