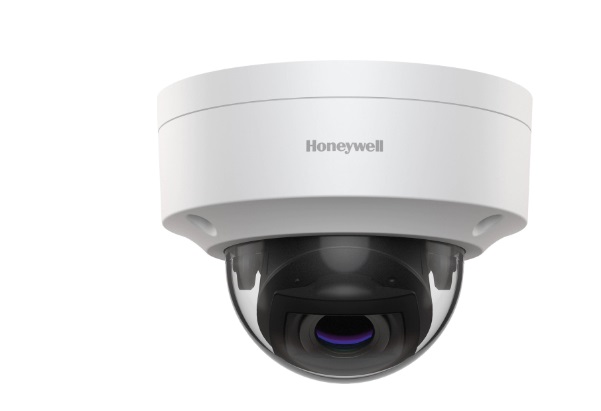

Camera IP Dome hồng ngoại 5.0 Megapixel HONEYWELL HC30W45R2
– Cảm biến hình ảnh: 1/2.7-inch Progressive CMOS.
– Độ phân giải: 5.0 Megapixel.
– Ống kính: 2.8-12mm MFZ, F1.4-2.8mm.
– Tốc độ khung hình: Lên đến 30fps.
– Độ nhạy sáng tối thiểu: 0.035 lux (colour)/0 lux (B/W) @ F1.4 (with IR LEDs on).
– Hỗ trợ khe cắm thẻ nhớ Micro SD, Micro SDHC, Micro SDXC up to 256GB.
– Tầm quan sát hồng ngoại: 30 mét.
– Chuẩn nén hình ảnh: H.265/H.264/Smart Codec/MJPEG.
– Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời).
– Tiêu chuẩn chống va đập: IK10.
– Hỗ trợ chức năng cấp nguồn qua mạng PoE.
– Nguồn điện: 12 VDC.
Đặc tính kỹ thuật
Model | HC30W45R2 |
OPERATIONAL | |
Video Standard | NTSC/PAL |
Scanning System | Progressive |
Image Sensor | 1/2.7-inch Progressive CMOS |
Number Of Pixels (H × V) | 2560(H) x 1920(V) |
Minimum Illumination | 0.035lux color @ F1.4, 0 lux B/W with IR LEDs on @ F1.4 |
S/N Ratio | > 55 dB |
Electronic Shutter Speed | 1/5 ~ 1/32,000 |
IR Distance | Distance up to 30m (98ft) |
IR Light Control | Smart IR (Auto/Manual)/OFF |
IR Light Number | 2 |
Day/Night | Auto/Day/Night/Schedule |
Backlight Compensation | WDR, HLC |
White Balance | White Balance |
Gain Control | 0-100% |
Wide Dynamic Range | 120dB |
Noise Reduction | 3D DNR |
Privacy Masking | Off / On (5 Areas) |
Motion Detection | Motion detection/Intrusion detection/ People detection |
Tampering Detection | Tampering Detection/Image too dark detection/Image too bright detection/ Image too blurry detection |
Region Of Interest | Support |
Lens | 2.8mm~12mm, MFZ, F1.4~F2.8 |
Angle Of View | H: 88°-30°, V: 65°-23° @5MP H: 93°-32°, V: 51°-18° @4MP |
VIDEO | |
Video Compression | H.265/H.264/Smart Codec/MJPEG |
Resolution | 2560×1920/2048×1536/1600×1200/1280×960/800×600/640×480 |
Frame Rate | Main Stream: 5M/4M (1 ~ 25/30fps); *Up to 30fps @5M under H.265 only Sub Stream: 800×600 (1 ~ 25/30fps); Third Stream: VGA (1 ~ 25/30fps) |
Bit Rate Control | Constrained bit rate/Fixed quality |
Bit Rate | 20K ~ 40Mbps |
NETWORK | |
Ethernet | 10 Base-T/100 Base-TX Ethernet (RJ-45) |
Supported Web Browsers | Chrome 71 , Internet Explorer 11.0 |
Supported OS | Microsoft Windows 7/10 |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
Interoperability | ONVIF Profile G/S |
Maximum Users Access | 10 Users |
Security | User account and password protection, HTTPS, IP Filter,Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance |
Event | Event notification using HTTP, SMTP, NAS server and MicroSD card File upload via HTTP, SMTP, NAS server and MicroSD card |
Micro SD | Micro SD/SDHC/SDXC card slot (256GB) |
ELECTRICAL | |
Power Supply | DC12V, PoE (IEEE 802.3af) (Class 0) |
Power Consumption | MAX 12.95W |
MECHANICAL | |
Dimensions | Ø133.3mm x 99.8mm (Ø5.2-inch x3.93-inch) |
Product Weight | 0.76kg |
Package Weight | 1.1kg |
Material | Die-casting aluminum housing with coating |
Construction Color | RAL 120-1 (Lyric White) |
ENVIRONMENTAL | |
Operating Temperature | Starting: -10°C ~ 60°C (14°F ~ 140°F) Working: -30°C ~ 60°C (-22°F ~ 140°F) |
Relative Humidity | Less than 90%, non-condensing |
Ingress Protection | IP66 |
Vandal Resistance | IK10 |
REGULATORY | |
Emissions | FCC PART 15B, EN 55032, EN61000-6-3 |
Immunity | EN 50130-4 |
Safety | UL 62368-1, EN 62368-1 |
ROHS | EN 50581 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
