Mã số:37029603

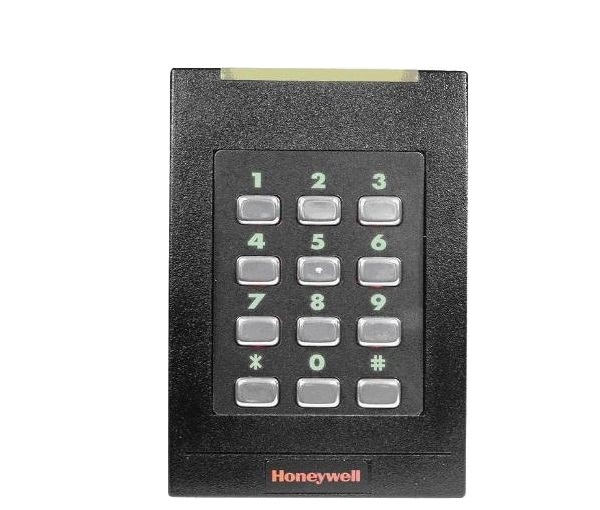

Đầu đọc thẻ HONEYWELL OM56BHONDT
– HONEYWELL OM56BHONDT là đầu đọc thẻ thông minh tích hợp bàn phím, hỗ trợ nhiều tiêu chuẩn ISO cho phép đọc được hầu hết các thẻ thông minh.
– Loại gắn giá treo tường.
– Giao diện Wiegand.
– Kích thước: 85 x 122 x 28 mm.
– Tiêu chuẩn báo vệ: IP55.
– Nhiệt độ hoạt động: -35ºC ~ 65ºC.
– Độ ẩm hoạt động: 5% ~ 95%.
Thông số kỹ thuật
| Model | OM56BHONDT |
| Mounting | Wall Switch Size designed to mount and cover single gang switch oxes primarily used in the Americas and includes a slotted mounting plate for European and Asian back box spacing |
| Keypad | Yes |
| Dimensions (W × H × D) | 8.5 x 12.2 x 2.8 cm |
| Typical Read Ranges OmniClass/iCLASS credential |
2k/16k Smart (OKP0…/ OKP2…): 11.4 cm iClass SE credential: 11.4 cm Key/tag Smart(PXKEYH…/OKS…): 5.7 cm |
| MIFARE / DESFire credential | SE for MIFARE Classic ISO card: 10.2 cm SE for MIFARE Classic Key/tag: 3.8 cm SE for DESFire EV1 ISO card: 5.1 cm |
| Proximity credential (125kHz) | HID Prox/ AWID ISO Card: 6.4 cm HID Prox/ AWID Key/tag: 3.8 cm EM4102 ISO Card: 7.6 cm |
| Smart Card Compatibility | 15693: Reads iClass/OmniClass credentials, card serial number 14443B: Reads iClass/OmniClass credentials (secure) |
| Additional ISO support | 14443A 1-3: Reads NXP MIFARE Classic credentials, Sector 14443A 1-4: Reads NXP MIFARE DESFire EV1 credentials, AES Encrypted files 14443A: Reads NXP MIFARE Classic, DESFire EV1 credentials, Card Serial Number (CSN or UID) |
| 125kHz proximity compatibility | HID Prox, AWID and EM4102 |
| Key Length | iClass/ OmniClass 64 bit encryption iClass SE/ iCLASS Seos 128 bit AES Encryption SE for MIFARE Classic/ SE for DESFire EV1 128 bit AES Encryption |
| Data Encryption | Available between card and reader (OmniClass and iClass) Additionally on credential (SE for MIFARE Classic and MIFARE DESFire EV1) |
| Cryto Processor Hardware Common Criteria Rating | EAL5 |
| Regulatory Approvals | UL294/cUL (US), FCC Certification (US), IC (Canada), CE (EU), C-tick (Australia, New Zealand), SRRC (China), KC (Korea), NCC (Taiwan), iDA (Singapore) |
| Operating Temperature | -31º to 150º F (-35º to 65º C) |
| Operating Humidity | 5 to 95% relative humidity (non-condensing) |
| Operating Voltage Range | 5 – 16 VDC |
| Normal Standby Current | 95mA |
| Maximum Average Current | 105mA |
| Termination | 9 wire terminal block |
| Tamper Output | Available (Optical sensor) |
| Hold Wire Input | Yes |
| Panel Interfaces | Wiegand |
| IP Rating | IP55 |
– Bảo hành: 12 tháng.
