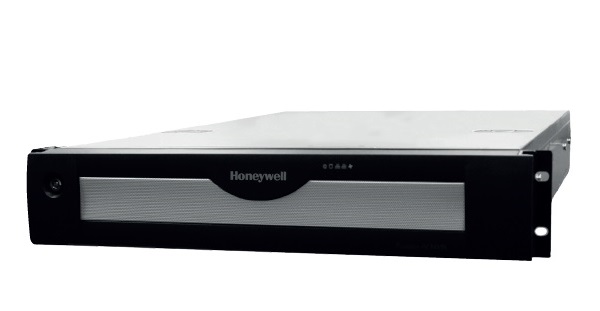

Server ghi hình 64 kênh HONEYWELL MAXPRO HNMSE64C04T

– Server ghi hình MAXPRO SE 64 kênh IP.

– Bộ xử lý: Intel® Core™ i7-7700, 3.6GHz, Intel HD Graphics 630.

– Bộ nhớ RAM: 16GB DDR4.

– HDD: 250GB M.2 SSD, 1 x 4TB.

– Chuẩn nén hình ảnh: MJPEG, MPEG-4, H.264, H.265.

– Giao tiếp mạng: 2 x 1GbE.

– Băng thông: Incoming 64Mbps, Outgoing 200Mbps.

– Chế độ ghi hình: 1920 fps @ 4CIF/VGA or 1920 fps @ 720p HD or 1280 fps @ 1080p (4 Mbps bitrate) HD.

– Chế độ xem lại: 1/4/8/16.

– Đầu ra video: Dual monitor support -2 HDMI, 1 DVI-D, 1 DVI-I.

– Hỗ trợ cổng USB: 1x Front, 6x Back (including 4x USB 3.0).

– Hỗ trợ 19 User truy cập từ xa.

– Hệ điều hành: Windows 10 IoT Enterprise for Embedded Systems.

– Nguồn điện: 100-240V ~ 50/60 Hz – max 500W.

Thông số kỹ thuật

Model	HNMSE64C04T
Operational
Database	Microsoft® SQL Server® 2019 Express
Operating system	Windows 10 IoT Enterprise for Embedded Systems
Image compressions supported	MJPEG, MPEG-4, H.264, H.265
Supported honeywell ip cameras and encoders	Supports Honeywell’s Performance IP, equIP® Series, 30/60 Series IP cameras.
Audio support	2-way audio for specific IP camera models
Maximum number of desktop client connections	Desktop Client – 38 per unit from 19 remote workstations 2 local on NVR
Salvo layouts	Desktop Client – Full, 2×2, 1×5, 3×3, 2×8, 1×12, 4×4. Web Client – 2×2.1×1,1×2,1×3. Mobile app (Phone) – 2×2,2×4,1×2, 1×1. Mobile app (Tablet) – 3×3, 2×2, 1×1.
Picture controls per camera	Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror
OSD	Concealed text option
Playback controls per camera – desktop client	FWD/REV Play x (1, 2, 4, 8, 16) Slow FWD/REV Play x (1/2, 1/4, 1/8)
Search types	Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search
Recording schedule	Continuous and event based with H/M/D and holiday and exception days
Recording methods per camera	Continuous, event based and user activated
Live settings per camera	Compression format, resolution and frame rate
Record settings per camera	Same as live or reduced frame rate
Clip format	Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports. WMV with digital certificate for authentication playable with Windows media player. ASF for faster exporting of longer than an hour backup clips in native compression format
Video clip authentication	Digital signature, verification tool provided
Motion detection location	Camera based for supported models or Server based (SMART VMD) for all models (except 360 fisheye /panomorph views)
Event recording	Pre and post duration setting
Operator reporting	Per user, configurator, session and viewer
Event report	Per camera or recorder events
Operators	1024
Hardware
Processor	i7-9700K Processor (12M Cache, up to 4.90 GHz)
Memory	16 GB DDR4
Power supply	Single 500 W
OS Partition	250GB M.2 SSD OS drive
Storage capacities	1 x 4TB
Storage hard drive options	6 bays – all field-upgradable, 4TB SATA hard drives
Optical	24x DVD-RW
Network	Two 1 GB Ethernet included
Chassis with locking bezel	2U 6 bay including rack mount kit
Connections
Mouse and keyboard	2 x USB
USB	1x Front, 6x Back (including 4x USB 3.0)
Network	2 x RJ45
Monitor output	1 HDMl, 1 Display Port, 1 DVI, 1 VGA
Electrical
Input voltage	100-240V ~ 50/60 Hz – max 500W, Auto Switching
Power dissipation	Average BTU rating = 569 BTU/HR
Mechanical
Construction	Housing: Steel chassis Finish: Black matte paint
Dimensions (W x H x D)	437 x 88 x 660 mm
Weight	19.5kg
Temperature operating	Operating: 5°C to 40°C (40°F to 104°F) Storage: -10°C to 65°C (14°F to 150°F)
Relative humidity	0-90% non-condensing

– Bảo hành: 24 tháng.
