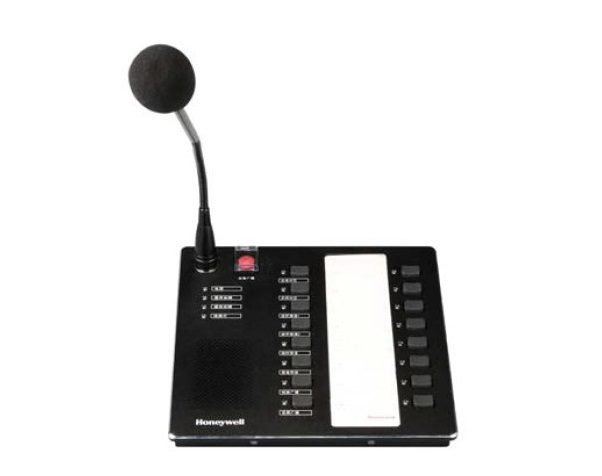

Micro chọn vùng Honeywell HMC-2000
– 8 phím chức năng
– 8 phím chọn zone/group
– Có thể gắn thêm bàn mở rộng phím chọn zone/group
– Nguồn: 24VDC
– Nhiệt độ hoạt động: -10°C~ 55°C
– Kích thước: 200 × 46.5 × 200 mm (W x H x D)
Features
– Built-in speaker for audio channel monitor.
– Temporary recording function for instant message recording and broadcasting.
– Audio line to facilitate BGM from an external audio source
– Separate volume controller for mic input, line-in and speaker.
– 8 freely programmable buttons
– Expandable with X-K4/X-K8 keypad modules if required.
– Automatic fault detection.
– CAT5 cable connection with HCU-2000, max. distance is 600m.
– Powered by HCU-2000 or external power.
– Up to 6 HMC-2000 can be connected in one system
Specifications
Model | HMC-2000 |
Power supply voltage | DC 24V |
Rated power | 10 W |
Mic Input | |
Input sensitivity | 5mV |
Input impedance | 600Ω |
Frequency response | 100 Hz -10KHz |
SNR | >77dB, A weighted |
THD | <0.5% |
Optimal pickup distance | 10~20cm |
Line Input | |
Input signal | 1V (0dBV) |
Input impedance | 10 KΩ |
Frequency response | 50Hz-18KHz |
SNR | >90dB, A weighted |
Others | |
Monitoring loudspeaker | 2W/8Ω |
Humidity | < 95%, without condensing |
Operating temperature | -10°C~ 55°C |
Dimensions | 200 × 46.5 × 200 mm |
Weight | 1.4Kg |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
