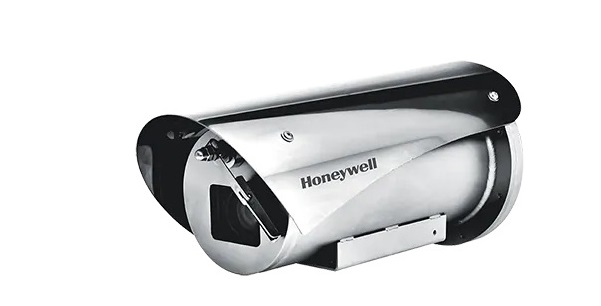

Camera IP chống cháy nổ 2.0 Megapixel HONEYWELL HEPB302W01A04
– Cảm biến hình ảnh: 1/2.8-inch Sony Progressive CMOS.
– Độ phân giải camera ip: 2.0 Megapixel.
– Ống kính: 4.5–135 mm, F1.6–F4.4.
– Tốc độ khung hình: Lên đến 60 fps.
– Độ nhạy sáng tối thiểu: 0.005 lux (color), 0.0005 lux (B/W) @ F1.6.
– Chuẩn nén hình ảnh: H.265/H.264/MJPEG.
– Tiêu chuẩn chống bụi và nước: IP68 (thích hợp sử dụng trong nhà và ngoài trời).
– Nguồn điện: 12VDC/ 24VDC/ 24VAC.
Đặc tính kỹ thuật
| Model | HEPB302W01A04 |
| CAMERA | |
| Image Sensor | 1/2.8-inch Sony Progressive CMOS |
| Optical Zoom | 30x |
| Digital Zoom | 16x |
| Number of Pixels | 1920 (H) × 1080 (V) |
| Shutter WDR | 120 dB |
| S/N RATIO | 55dB or more (AGC off) |
| Minimum Illumination | 0.005 lux (color), 0.0005 lux (B/W) @ F1.6 |
| Lens | 4.5–135 mm, F1.6–F4.4 |
| Angle of View | H: 62.35°–2.53° V: 37.87°–1.79° |
| Electronic Shutter Speed | 1/1–1/30 000 s |
| Day/Night | Auto/Color/BW |
| Backlight Compensation | BLC/HLC/WDR (120 dB) |
| White Balance | Auto/Indoor/Outdoor/ATW/Manual |
| Noise Reduction | 3DNR |
| Electronic Image Stabilization | On/Off |
| Defog | On/Off |
| OPERATION | |
| Privacy Masks | 24 |
| Motion Detection | On/Off |
| Video Analytics | Intrusion trace*; face detection |
| Event | Intrusion; face detection; motion detect; video tamper; IP address conflict; illegal access |
| Event Notification | Record to FTP, relay output, email, snapshot |
| IP SPECIFICATIONS | |
| Video Compression | H.265/H.264/MJPEG |
| Video Streaming | Primary Stream: 1080p@ 50/60 fps; 1.3 MP/720p @ 25/30 fps Second Stream: 1080p/1.3 MP/720p @ 25/30 fps Third Stream: D1/CIF @ 25/30 fps |
| Video Resolution | Up to 1920 × 1080 pixels |
| Interface | RJ45, 10/100 Mbps Ethernet |
| Supported Protocols | IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, SSL, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, Bonjour, DNS, DDNS, IEEE 802.1x, QoS, NTP, IP Filter, ONVIF, RS485, Pelco P, Pelco D |
| Security | Multiple user access levels with enhanced password policy, IP filtering, IEEE 802.1X, strong digest authentication for access permission, HTTPS, TLS1.2 only, highstrength encrypted algorithm AES-256, SSH/ Telnet closed, FTP disabled to reduce surface being attacked, PCI-DSS compliant, built-in cybersecurity hardware chipset |
| Maximum Users | 20 users |
| Supported Languages (Web Client/Help) | English, Arabic, Czech, Dutch, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Turkish |
| Web Browsers | Internet Explorer (11.0 ), Firefox, Chrome |
| Supported OS | Windows 7 32-bit/64-bit |
| Communication | ONVIF Profile S |
| ELECTRICAL | |
| Power Source | 24 VAC, 2.2 A, 50/60 Hz 24 VDC, 2.2 A or 12 VDC, 3.5 A |
| Power Consumption | 42 W max (with heater on) |
| MECHANICAL | |
| Dimensions | 264 × 155.5 mm |
| Weight | 8.5 kg |
| Connectors | Power Input: 3-pin Digital Input and GND: 2-pin for reset Alarm Output: 1 out RS485: Internal use only for wiper Network: RJ45, 10/100 Mbps Ethernet |
| Construction | AISI 316L stainless steel, thermally tempered glass |
| Armoured Cable | 4 m |
| Cable Glands | Cable gland with gasket, Ex d, 3/4-inch NPT |
| ENVIRONMENTAL | |
| ATEX | II 2 G Ex d IIC T5 Gb II 2 D Ex tb IIIC T100°C Db IP66/68, -60⁰C ≤ Ta ≤ 65⁰C |
| IECEx | Ex d IIC T5 Gb Ex tb IIIC T100°C Db IP66/68, -60⁰C ≤ Tamb ≤ 65⁰C |
| Operating Temp | -50°C to 65°C, cold start -40°C |
| Relative Humidity | 10–95%, non-condensing |
| Ingress Protection | IP66/IP68 IP69 (metal housing only) |
| REGULATORY | |
| ATEX | EN 60079-0; EN 60079-1; EN 60079-3 |
| IECEx | IEC 60079-0; IEC 60079-1; IEC 60079-31 |
| Emissions | EN 55032; EN 61000-6-4 |
| Immunity | EN 50130-4 |
| Safety | EN60950-1; EN60950-22 |
| RoHS | EN 50581 |
– Sản xuất tại Trung Quốc.
– Bảo hành: 12 tháng.
