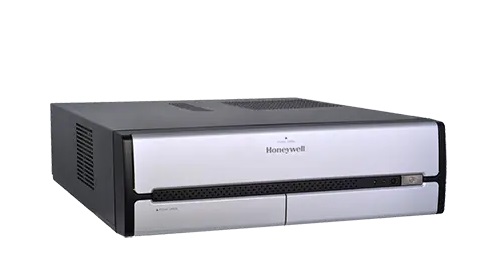

Server ghi hình 16 kênh HONEYWELL MAXPRO HNMXE16C20T

– Server ghi hình MAXPRO XE 16 kênh IP.

– Bộ xử lý: Intel® Core™ i5-7500, 3.4GHz, Intel HD Graphics 630.

– Bộ nhớ RAM: 8GB DDR4.

– HDD: 250GB M.2 SSD, 20TB.

– Chuẩn nén hình ảnh: MJPEG, MPEG-4, H.264, H.265.

– Giao tiếp mạng: 2 x 1GbE.

– Băng thông: Incoming 64 Mbps, Outgoing 200 Mbps.

– Chế độ ghi hình: 480 fps @ 4CIF/VGA or 480 fps @720p HD or 480 fps @ 1080p (4 Mbps bitrate) HD.

– Chế độ xem lại: 1/4/8/16.

– Đầu ra video: Dual monitor support -2 HDMI, 1 DVI-I, 1 DVI-D.

– Hỗ trợ 9 User truy cập từ xa.

– Hỗ trợ cổng USB: 4 Front, 6 Rear (including 4 USB 3.0).

– Hệ điều hành: Windows 10 IoT Enterprise for Embedded Systems.

– Nguồn điện: 115-230 VAC, 60/50 Hz, max 300W.

Thông số kỹ thuật

Model	HNMXE16C20T
Software
Database	Microsoft® SQL Server® 2019 Express
Operating system	Windows 10 IoT Enterprise for Embedded Systems
Image compressions supported	MJPEG, MPEG-4, H.264, H.265
Supported honeywell ip cameras and encoders	Supports Honeywell’s Performance IP, equIP® Series, 30 Series IP cameras.
Audio support	1-way audio for specific IP camera models
Maximum number of desktop client connections	Desktop Client – 18 remote per unit from 9 remote workstations 1 local on NVR server
Salvo layouts	Desktop Client – Full, 2×2, 1×5, 3×3, 2×8, 1×12, 4×4. Web Client – 2×2.1×1,1×2,1×3. Mobile app (Phone) – 2×2,2×4,1×2, 1×1. Mobile app (Tablet) – 3×3, 2×2, 1×1
Picture controls per camera	Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror
OSD	Concealed text option
Playback controls per camera – desktop client	FWD/REV Play x (1, 2, 4, 8, 16) Slow FWD/REV Play x (1/2, 1/4, 1/8)
Search types	Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search
Recording schedule	Continuous and event based with H/M/D and holiday and exception days
Recording methods per camera	Continuous, event based and user activated
Live settings per camera	Compression format, resolution and frame rate
Record settings per camera	Same as live or reduced frame rate
Clip format	Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports. WMV with digital certificate for authentication playable with Windows media player. ASF for faster exporting of longer than an hour backup clips in native compression format
Video clip authentication	Digital signature, verification tool provided
Motion detection location	Camera based for supported models or Server based (SMART VMD) for all models (except 360 fisheye /panomorph views)
Event recording	Pre and post duration setting
Operator reporting	Per user, configurator, session and viewer
Event report	Per camera or recorder events
Operators	1024
Hardware
Processor	Intel® Core™ i5-7500, 3.4 GHz, Intel HD Graphics 630
Memory	8GB DDR4
Power supply	Single 300W
OS Partition	250GB M.2 SSD OS drive
Storage capacities	20TB
Optical	22x DVD-RW
Network	Two 1GB Ethernet included
Connections
Mouse and keyboard	USB
USB	4 Front, 6 Rear (including 4 USB 3.0)
Network	2 x RJ45
Monitor output	Dual monitor support -2 HDMI, 1 DVI-I, 1 DVI-D
Electrical
Input voltage	115-230 VAC, 60/50 Hz, max 300W
Power dissipation	Average BTU rating = 318 BTU/HR
Mechanical
Dimensions (W x H x D)	330 x 96 x 365 mm
Weight	11.36 kg
Temperature operating	Operating: 5°C to 40°C (40°F to 104°F) Storage: -10°C to 65°C (14°F to 150°F)
Relative humidity	0-90% non-condensing

– Bảo hành: 24 tháng.
