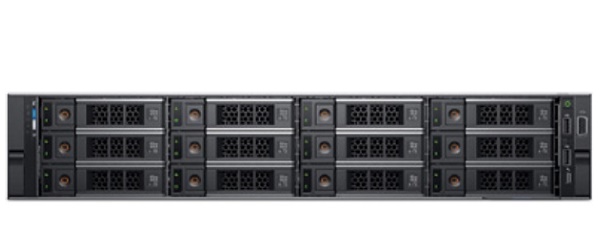

Server ghi hình 64 kênh HONEYWELL MAXPRO HNMPE64C144T12

– Server ghi hình MAXPRO PE 64 kênh IP.

– Bộ xử lý: Intel® Xeon® Silver 4110, 2.1 GHz.

– Bộ nhớ RAM: 16GB.

– HDD: 2x 240GB M.2 SSD, RAID 1, 12×12 TB SATA.

– Dự phòng lưu trữ video với hỗ trợ RAID 5/6.

– Chuẩn nén hình: MJPEG, MPEG-4, H.264, H.265

– Giao tiếp mạng: 4 x 1GbE với tùy chọn 10GbE SFP .

– Băng thông: Incoming 160 Mbps, Outgoing 700 Mbps.

– Chế độ ghi hình: 3840 fps @ 1080p (4.0 Mbps bitrate) HD.

– Chế độ xem lại: 1/4/8/16.

– Tương thích với tín hiệu ngõ ra: 1 x VGA, 1 x VGA.

– Hỗ trợ 19 User truy cập từ xa.

– Hỗ trợ cổng USB: 2 x USB 2.0, 2 x USB 3.0.

– Hệ điều hành: Windows 10 IoT Enterprise for Embedded Systems.

– Nguồn điện: 110/220 VAC 50/60 Hz.

Thông số kỹ thuật

Model	HNMPE64C144T12
Operational
Database	Microsoft® SQL Server® 2019 Express
Operating system	Windows 10 IoT Enterprise for Embedded Systems
Image compressions supported	MJPEG, MPEG-4, H.264, H.265
Supported honeywell ip cameras and encoders	Supports Honeywell’s Performance IP, equIP® Series, 30/60 Series IP cameras.
Audio support	2-way audio for specific IP camera models
Maximum number of desktop client connections	Desktop Client – 38 per unit from 19 remote workstations 1 local on NVR
Salvo layouts	Desktop Client – Full, 2×2, 1×5, 3×3, 2×8, 1×12, 4×4. Web Client – 2×2.1×1,1×2,1×3. Mobile app (Phone) – 2×2, 2×4, 1×2, 1×1. Mobile app (Tablet) – 3×3, 2×2, 1×1
Picture controls per camera	Sharpness, blur, brightness, contrast, hue, saturation, maintain aspect ratio, stretched, original size and picture mirror
OSD	Concealed text option
Playback controls per camera – desktop client	FWD/REV Play x (1, 2, 4, 8, 16) Slow FWD/REV Play x (1/2, 1/4, 1/8)
Search types	Time/date timeline, time jump FWD/REV, bookmarks, calendar, preview, film strip, event search and SMART Motion Search
Recording schedule	Continuous and event based with H/M/D and holiday and exception days
Recording methods per camera	Continuous, event based and user activated
Live settings per camera	Compression format, resolution and frame rate
Record settings per camera	Same as live or reduced frame rate
Clip format	Honeywell MPVC playable with standalone MAXPRO Clip Player for faster and secure exports. WMV with digital certificate for authentication playable with Windows media player. ASF for faster exporting of longer than an hour backup clips in native compression format
Video clip authentication	Digital signature, verification tool provided
Motion detection location	Camera based for supported models or Server based (SMART VMD) for all models (except 360 fisheye /panomorph views)
Event recording	Pre and post duration setting
Operator reporting	Per user, configurator, session and viewer
Event report	Per camera or recorder events
Operators	1024
Hardware
Processor	Intel® Xeon® Silver 4110, 2.1 GHz
Memory	16GB
Power supply	1 1 750W hot plug redundant 80 Platinum
OS Drive	2x 240 GB M.2 SSD, RAID 1
Storage capacities	12×12 TB SATA
Storage hard drive options	12 field upgrade 12TB
Network	4 x 1GbE with optional 10GbE SFP
Chassis with locking bezel	2U, 12 bay including rack mount kit
RAID card	Data RAID Level: 0, 1, 5, 6, 10
Connections
Mouse and keyboard	2 x USB
USB	Front: 2 x USB 2.0, Rear: 2 x USB 3.0
Network	4 x RJ45
Monitor output	Front: 1 x VGA, Rear: 1 x VGA
Electrical
Input voltage	110/220 VAC 50/60 Hz
Operating voltage	110V/220V Auto Sensing
Power dissipation	Average BTU rating = 880 BTU/HR Peak BTU rating = 2800 BTU/HR
Mechanical
Construction	Chassis: Grey matte paint
Dimensions (W x H x D)	434 x 86 x 708 mm
Weight	32.5kg
Temperature operating	10°C to 35°C
Relative humidity	5-90% non-condensing

– Bảo hành: 24 tháng.
